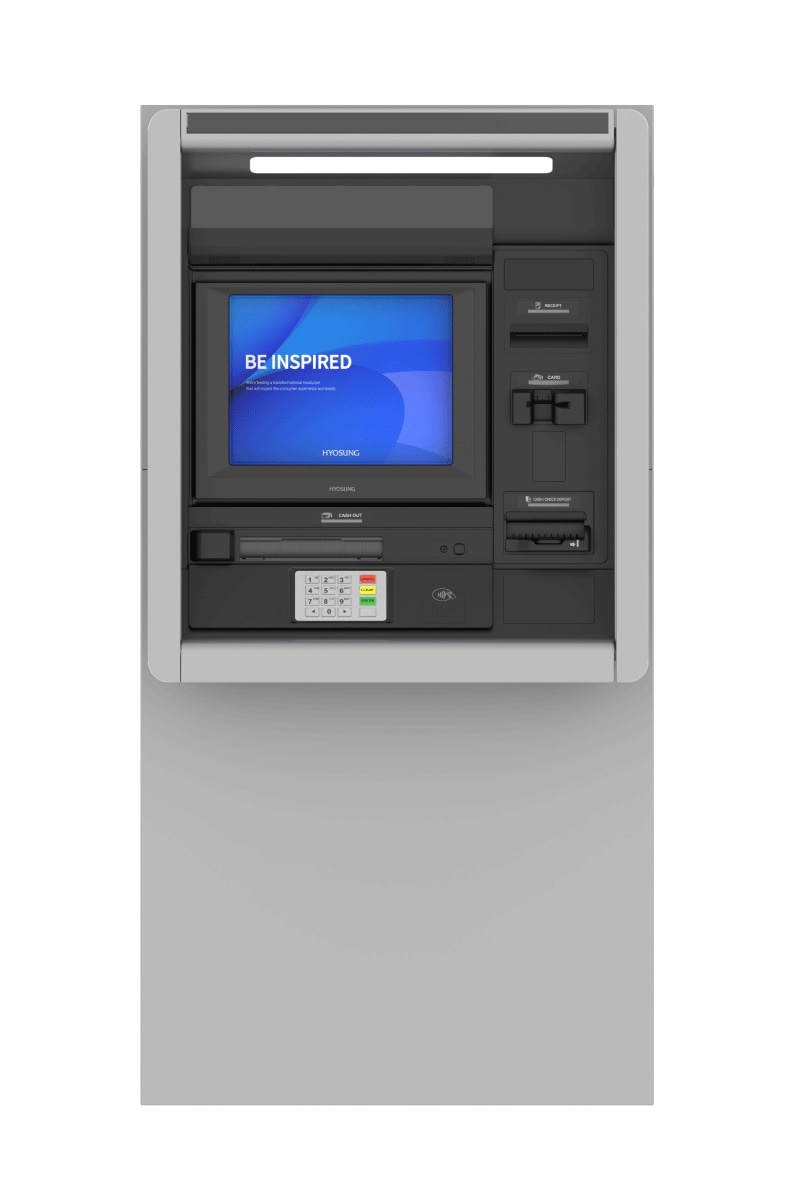

Drive-Up ATMs | Hyosung 7D

  • Overview|
  • Specifications

Hyosung’s proven, reliable, full-function ATM.

Designed to provide unprecedented reliability, Series 7 ATMs are unparalleled in the market. The 7D through-the-wall drive-up ATM can easily be upgraded from a cash dispenser to deposit automation and supports large volume transactions. It’s high uptime and minimum maintenance has helped make Hyosung the fastest growing ATM company.

Highest Availability

Innovative design and the use of Hyosung manufactured core technologies allows for fast, easy replenishment and reduced downtime. The 7D is designed to provide reliability that is unequaled in the market, with minimum maintenance and maximum up time.

Flexibility

The Series 7 ATMs can also be easily upgraded from a cash dispenser to deposit automation should an institution decide to implement the technology later.

Capacity

High capacity, cash dispense capability and the ability to support large volume transactions, makes the 7D a high capacity machine.

Security Options

Hyosung ATMs defend against physical and logical attacks with a multi-level locked down operating system, anti-skimming, white-listing, and encryption.

Comes Standard with:

  • UL291 Level 1 Safe with Electronic Lock
  • 6K Note (2 Cassette) Cash Dispenser with Bundle Retraction and Automatic Shutter (Note: To upgrade dispenser simply add additional cassettes up to 12k capacity.)
  • EMV Level 1, 2 Compliant Card Reader
  • 15" Color TFT LCD Touch Screen Consumer Interface
  • 10" Collar
  • 15" TFT Color LCD Touch Screen
  • Security Camera
  • Heater
  • 3.1" Graphical Thermal Receipt Printer
  • Electronic Journal
  • 8GM RAM
  • TPM 2.0
  • Microsoft® Windows 10® Platform

System Platform:

Microsoft Windows 10 Platform

Hyosung MoniPlus including Hyosung MoniGuard Security

Hyosung MoniCRM

Hyosung Connect

Hyosung MoniManager

Customer Interface:

15" LCD Touch Screen

Privacy Filter

PCI Compliant EPP

Headphone Jack with Volume Control

Card Reader - DIP, EMV Compliant

Contactless - Integrated Reader (via Card, Smartphone, or Smartwatch)

Media Handling:

Cash Dispenser

  • Configurable denominations up to 4 high capacity dispense cassettes
  • 3,000 Notes per Cassette
  • Bundle Present, Bundle Retract
  • Note By Note Rejection
  • Automatic Shutter

Cash & Check in Module (CCIM)

  • Maximum capacity mixed 50 cash/checks per bundle per transaction
  • Up to 2,000 notes cassette capacity
  • Up to 2,000 checks cassette capacity
  • Reject and Retract Capability

Security:

UL291 Level 1 Safe

Seismic & Heat Detector

Locking Device – Elecronic, Mechanical Combination Lock, Kaba Mas Cencon Lock (optional)

IP or Analog Security Camera (optional)

Awareness Mirror

Hyosung MoniGuard Solutions

Trusted Platform Module (TPM)

Printer:

3.1" Graphical Thermal Receipt Printer

Servicing:

Rear Access

State of Health Indicators for all Modules

Additional Features:

Backup Battery Reserves the Last Transaction & Safe Shutdown

Heater Supported Operating

Barcode Reader (optional)

Power Supply:

AC 100V ~ 127V±10%, 200V ~ 240V±10% 50/60 Hz

Environmental Conditions:

Temperature: 32°F - 104°F (with Heater 14°F - 104°F)

Humidity: 25%-85%

Dimensions:

Height: 54.4" (1383 mm)

Width: 28.4" (721 mm)

Depth - Safe: 32.1" (815 mm) w/ Collar: 11.3" (288mm)

Weight: 1,576.3 lbs (715 kg)
