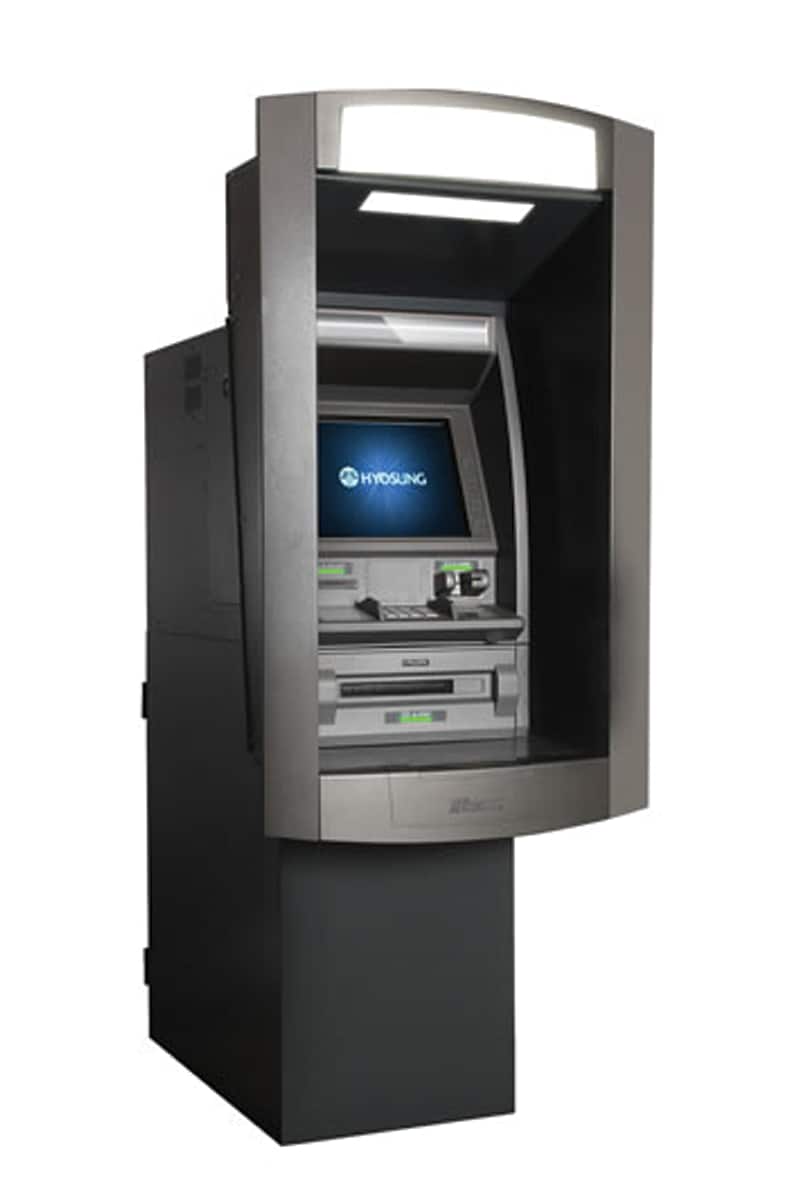

Walk-Up ATMs | Hyosung 5600T

  • Overview|
  • Specifications

The MoniMax 5600T is designed to meet various customer’s demands of withdrawal, balance inquiry and transfer transaction for individuals with a compact size to fit in virtually any place. This machine is connected to your bank to dispense cash, transfer funds and inquiry balance through the insertion of a customer’s card. The MoniMax 5600T is easy to use, easy to service and is able to support customer’s needs.

Maximum Reliability

Monimax 5600T is designed to provide 2nd to none reliability in the market with highest uptime and with minimum maintenance needs. You won't have to worry about replacing the parts or sudden breakdowns because the Monimax 5600T is designed to run for a very long time, problem-free.

Environment Stewardship

With quality comes also responsibility. Monimax series are equipped with energy saving features like low energy LCD and long lasting ATM parts with minimum implications to the environment.

Flexibility

Monimax series are designed with open architecture platform allowing for easy future upgrades and module modifications. Modular design is one of ways in which we are trying to save our customers' cost and provide maximum convenience.

Ultimate Functionality

Monimax 5600T offers ultimate functionality featuring bill payment, funds transfer, mobile top-up in a highly user friendly interface for maximum convenience and very easy transition.

Maximum Protection

Complying to standards in various regions worldwide, Nautilus Hyosung offers advanced security measures while highly secured integrity of the Monimax 5600T prevents any attempted security breaches from occurring. Monimax 5600T is also easily integrated with any monitoring solutions to provide seamless data transfer for effective management of the self-service channels.


Comes Standard with:

  • Through-the-Wall Access
  • Level 1 Safe
  • 15.1" Color TFT LCD Screen with Privacy Filter
  • 6k Note (2x 3,000 Note Cassettes) CDU
  • Electronic Lock
  • EMV Dip Card Reader
  • Security Camera
  • Thermal Receipt Printer
  • Windows 10 Operating System
  • H81 Core

System Platform:

Microsoft® Windows® 10 Operating System

H81 Core

Communication:

TCP/IP, Wireless

Screen Display:

15" color TFT LCD, Privacy filter, sunlight readable

Input Type:

PCI EPP (Encrypting Pin Pad), 8 function keys, touch screen

Security:

Mechanical Combination Lock, Electronic Lock, KABA Mas Cencon Lock (Optional), Security Camera, UL291 Level 1

Card Reader:

Dip Hybrid Card Reader, EMV Level 1, EMV Level 2

Cash Dispenser:

Up to four cassettes, note-by-note rejection, 3,000 notes cassette, bundle present, bundle retraction, automatic shutter

Printers:

Graphical Thermal Receipt Printer, Journal printer (thermal, dot)

Additional Features:

Lead-through Indicator, Audio Jack, Speaker, VFD (Vaccum fluorescent display)

Power Supply:

AC 110-240V, 50-60 Hz, Back-up battery (reserving last transaction & safe shutdown)

Environmental Conditions:

Temperature: 0°C ~ 40°C ( 32°F ~ 104°F ), Temperature: -31°C ~ 40°C ( -24°F ~ 104°F ) with heater, Humidity: 25%-85%

Dimension:

Height: 61.1" (1655 mm)

Width: 18.2" (463 mm)

Depth: 43.7" (1111 mm)

Weight: 1023 lbs (464 kg)
