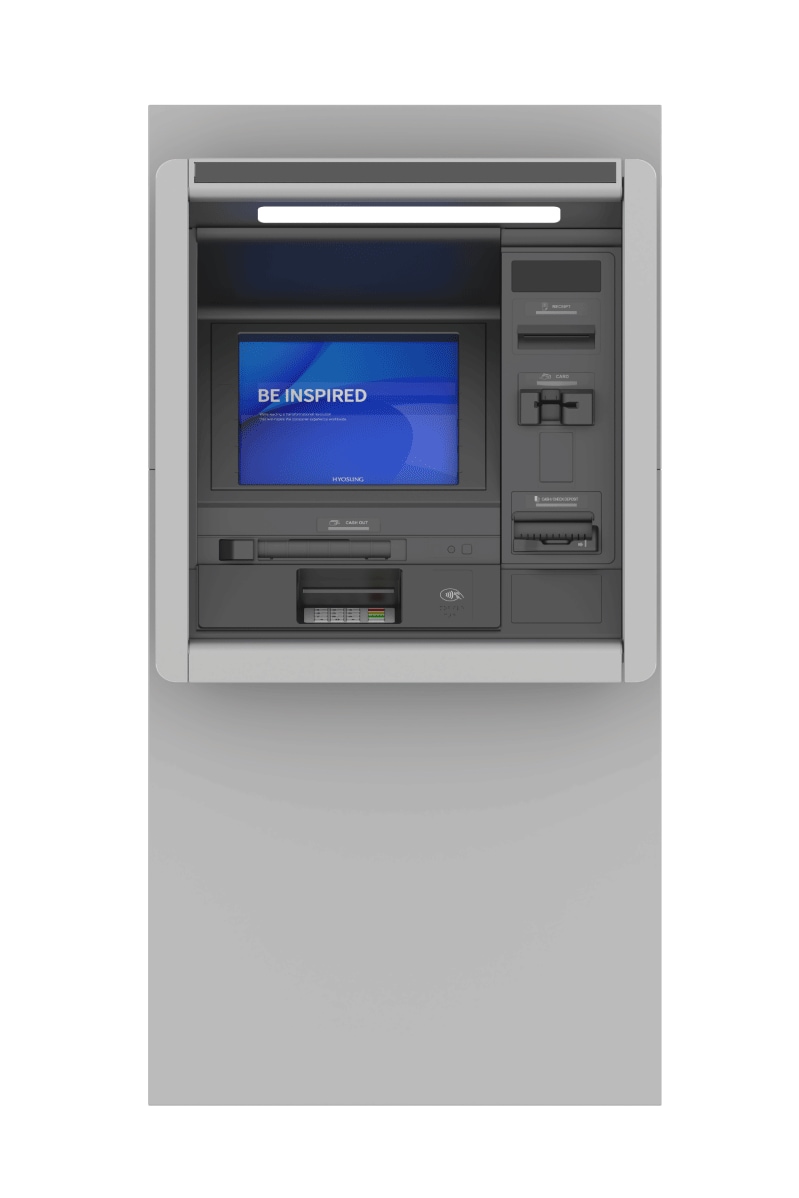

Hyosung’s proven, reliable, full-function ATM.
Designed to provide unprecedented reliability, the 7T is unparalleled in the market. This full-function through-the-wall ATM can easily be upgraded from a cash dispenser to deposit automation and supports large volume transactions. The 7T’s highest uptime and minimum maintenance has helped make Hyosung the fastest growing ATM company.
High Availability
The innovative design and the use of Hyosung manufactured core technologies allows for fast, easy replenishment and reduced down time. The 7T is designed to provide reliability that is unequaled in the market, with minimum maintenance and maximum uptime.
Flexibility
The Series 7 ATMs can also be easily upgraded from a cash dispenser to deposit automation should an institution decide to implement the technology later.
Capacity
High capacity, cash dispense capability and the ability to support large volume transactions.
Comes Standard with:
- UL291 Level 1 Safe with Electronic Lock
- 6K Note (2 Cassette) Cash Dispenser with Bundle Retraction and Automatic Shutter
- PCI Compliant Card Reader
- Contactless Integrated Reader
- 10" Collar
- 15" Color TFT LCD Touch Screen Consumer Interface
- 15" TFT Color LCD Touch Screen Supervisor Operator Panel
- Heater
- 3.1" Graphical Thermal Receipt Printer
- Electronic Journal
- 8GM RAM
- TPM 2.0
- Microsoft® Windows 10® Platform
System Platform:
Microsoft Windows 10 Platform
Hyosung MoniPlus including Hyosung MoniGuard Security
Hyosung MoniCRM
Hyosung Connect
Hyosung MoniManager
Customer Interface:
15" LCD Touch Screen
Privacy Filter
PCI Compliant EPP
Headphone Jack with Volume Control
Card Reader - DIP, EMV Compliant
Contactless - Integrated Reader (via Card, Smartphone, or Smartwatch)
Media Handling:
Cash Dispenser
- Configurable denominations up to 4 high capacity dispense cassettes
- 3,000 Notes per Cassette
- Bundle Present, Bundle Retract
- Note By Note Rejection
- Automatic Shutter
Cash & Check in Module (CCIM)
- Maximum capacity mixed 50 cash/checks per bundle per transaction
- Up to 2,000 notes cassette capacity
- Up to 2,000 checks cassette capacity
- Reject and Retract Capability
Security:
UL291 Level 1 Safe
Seismic & Heat Detector
Locking Device – Elecronic, Mechanical Combination Lock, Kaba Mas Cencon Lock (optional)
IP or Analog Security Camera (optional)
Awareness Mirror
Hyosung MoniGuard Solutions
Trusted Platform Module (TPM)
Printer:
3.1" Graphical Thermal Receipt Printer
Servicing:
Rear Access
State of Health Indicators for all Modules
Additional Features:
Backup Battery Reserves the Last Transaction & Safe Shutdown
Heater Supported Operating
Barcode Reader (optional)
Power Supply:
AC 100V ~ 127V±10%, 200V ~ 240V±10% 50/60 Hz
Environmental Conditions:
Temperature: 32°F - 104°F (with Heater 14°F - 104°F)
Humidity: 25%-85%
Dimensions:
Height: 54.4" (1383 mm)
Width: 28.4" (721 mm)
Depth - Safe: 32.1" (815 mm) w/ Collar: 11.3" (288mm)
Weight: 1,576.3 lbs (715 kg)
