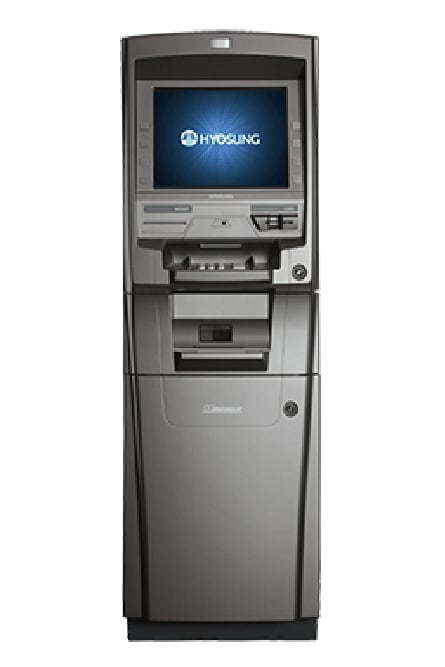

Lobby ATMs | Hyosung 5300SE

  • Overview|
  • Specifications

Your high-capacity, high-volume ATM solution with 24/7 access

The 5300SE delivers the powerful financial transaction support you need with a Windows CE platform base. This high-volume ATM solution features high-capacity note storage and 24/7 customer access. This rugged model brings you the same high quality and proven dependability you expect from industry leader Nautilus Hyosung.

Innovative Design

The latest advancement in customer convenience features a user-friendly interface displayed on a vivid 15" screen.

High Capacity

The 5300SE accommodates up to four 2,000-note cassettes for a maximum storage of 8,000 notes. The dispenser profile can be adjusted to suit your specific needs, making this the ideal solution for high-volume transactions.

Extra Security

Experience peace of mind knowing the 5300SE's high-volume of notes can be protected with a Level 1 safe option. The unique design also allows you to add an optional camera for added security.

Efficiency

This cutting-edge model offers you a low cost, financial institute grade ATM that is Windows CE platform based.

TCP/IP with SSL Support

The 5300SE includes built-in TCP/IP with Secure Socket Layers (SSL) for enhanced security while connected to the internet.

Reliability

You can count on the 5300SE. Its ease of maintenance and simplified service provide maximum availability and uptime with minimal operational intervention.


Comes Standard with:

  • UL291 Business Hour Safe
  • 15-Inch Color TFT LCD
  • 4k Note (2x 2K Note Cassette) CDU
  • Electronic Lock
  • Dial-Up Emulation
  • Graphic Thermal Receipt Printer
  • EMV Dip Card Reader

System Platform:

Microsoft® Windows® CE 6.0

Communication:

TCP/IP, Dial-up

Screen Display:

15" color TFT LCD, Privacy filter

Input Type:

Option RKT, PCI EPP (Encrypting Pin Pad), ADA Compliant, 4 x 2 function keys

Security:

UL 291 Business Hours Safe, Electronic Lock, KABA Mas Cencon Lock, Level1 Safe, Dial Lock, S&G Lock

Card Reader:

IC Card Reader (optional), Dip type card reader

Cash Dispenser:

2,000 Notes Cassette, Up to 8,000 notes (optional) upgradable to four cassettes

Printers:

Graphical Thermal Receipt Printer

Additional Features:

Audio Jack, Speaker, Flicker, EPP illumination, Braille keypad, Weatherized (water proof), Electronic Journal, Digital Receipt, Enhanced Standard 1 (Hyosung Standard), Retractable door handle, Topper, Supports three languages: English, Spanish, French

Power Supply:

AC 110-240V, 50-60 Hz

Environmental Conditions:

Humidity: 20%-85%, Temperature: 0°C ~ 40°C ( 28°F ~ 104°F )

Dimension:

Height: 54.4" (1,382 mm)

Width: 18.1" (460 mm)

Depth: 25.4" (644 mm)

Weight: 617 lbs (280 kg)

CONTACT US
Save
Print
  • Saved Estimates
  • Build Estimate

ATM Resources | Lobby ATMs | Hyosung 5300SE

  • Overview
  • Specifications

Your high-capacity, high-volume ATM solution with 24/7 access

The 5300SE delivers the powerful financial transaction support you need with a Windows CE platform base. This high-volume ATM solution features high-capacity note storage and 24/7 customer access. This rugged model brings you the same high quality and proven dependability you expect from industry leader Nautilus Hyosung.

Innovative Design

The latest advancement in customer convenience features a user-friendly interface displayed on a vivid 15" screen.

High Capacity

The 5300SE accommodates up to four 2,000-note cassettes for a maximum storage of 8,000 notes. The dispenser profile can be adjusted to suit your specific needs, making this the ideal solution for high-volume transactions.

Extra Security

Experience peace of mind knowing the 5300SE's high-volume of notes can be protected with a Level 1 safe option. The unique design also allows you to add an optional camera for added security.

Efficiency

This cutting-edge model offers you a low cost, financial institute grade ATM that is Windows CE platform based.

TCP/IP with SSL Support

The 5300SE includes built-in TCP/IP with Secure Socket Layers (SSL) for enhanced security while connected to the internet.

Reliability

You can count on the 5300SE. Its ease of maintenance and simplified service provide maximum availability and uptime with minimal operational intervention.


Comes Standard with:

  • UL291 Business Hour Safe
  • 15-Inch Color TFT LCD
  • 4k Note (2x 2K Note Cassette) CDU
  • Electronic Lock
  • Dial-Up Emulation
  • Graphic Thermal Receipt Printer
  • EMV Dip Card Reader

System Platform:

Microsoft® Windows® CE 6.0

Communication:

TCP/IP, Dial-up

Screen Display:

15" color TFT LCD, Privacy filter

Input Type:

Option RKT, PCI EPP (Encrypting Pin Pad), ADA Compliant, 4 x 2 function keys

Security:

UL 291 Business Hours Safe, Electronic Lock, KABA Mas Cencon Lock, Level1 Safe, Dial Lock, S&G Lock

Card Reader:

IC Card Reader (optional), Dip type card reader

Cash Dispenser:

2,000 Notes Cassette, Up to 8,000 notes (optional) upgradable to four cassettes

Printers:

Graphical Thermal Receipt Printer

Additional Features:

Audio Jack, Speaker, Flicker, EPP illumination, Braille keypad, Weatherized (water proof), Electronic Journal, Digital Receipt, Enhanced Standard 1 (Hyosung Standard), Retractable door handle, Topper, Supports three languages: English, Spanish, French

Power Supply:

AC 110-240V, 50-60 Hz

Environmental Conditions:

Humidity: 20%-85%, Temperature: 0°C ~ 40°C ( 28°F ~ 104°F )

Dimension:

Height: 54.4" (1,382 mm)

Width: 18.1" (460 mm)

Depth: 25.4" (644 mm)

Weight: 617 lbs (280 kg)
